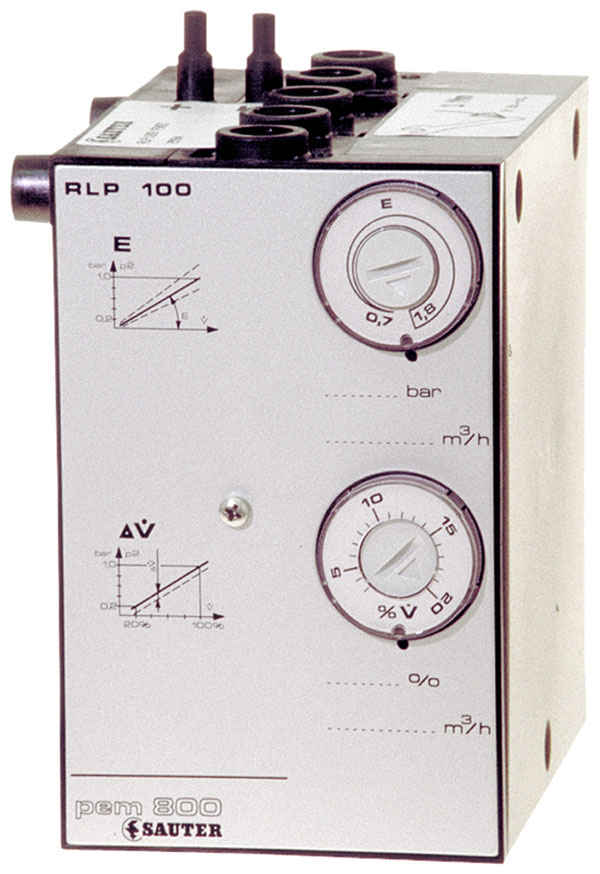

Pneumatic air-volume transducer

RLP100F903, F908

How energy efficiency is improved

Allows demand-based volume flow control for fume cupboards, laboratories and clean rooms


Features

  • Root-extracted output signal as command variable for extended control loops

  • Special version available for measuring aggressive gases

  • Suitable for explosion hazard zone 1 II 2 G T6

  • Conformity tested as per EN 13463-1 and EN 1127-1 (ex zone 1 II 2 G T6)

  • Accurate, static differential pressure sensor with large measuring range

  • Front plate printed with circuit diagrams for easy identification of the controller functions

  • Compressed-air connections with Rp⅛” female thread

  • Special measuring connection for detecting the air volume

  • Low-pressure connections with dual-diameter connector for soft plastic tubing (internal Ø 4 and 6 mm)

  • 1 input

    • Setpoint shift ∆

  • 1 output

    • Actual value, air volume

  • 1 adjuster for calibrating the sensor measuring range

  • 1 setpoint adjuster for limiting the setpoint shift ∆ to max. ±20%
